Replacing your Load Lid Gas Stays

A particular pressure gas stay is used in relation to the weight being held. Some reasons your gas stays may fail and need replacing are as follows:

  • Gas leaking
  • Oil leaking
  • Too much weight over a long period of time
  • Aged over time with continual use
  • Adding more weight such as bike carriers

These can be purchased and retro fitted. As they come in different pressures we will need to know exactly what you require. Please send a photo showing the highlighted code, so we can see what you have on board:

Replacing your Load Lid Gas Stays-1

We will require the Serial number, for instructions please CLICK HERE

And a photo of the top of the lid as this will depend on the strength needed as shown below:

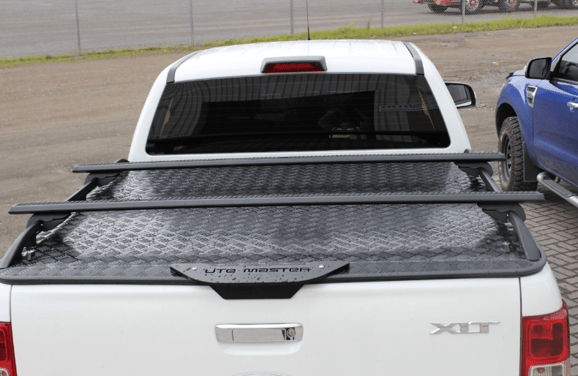

Replacing your Load Lid Gas Stays-2

If this is not covered by Warranty, the prices for these are:

305L650N Standard Gas Stays - Each $67.00 + GST
645L320N Sports Bars Gas Stays - Each $67.00 + GST
305L800N Extra Pressure standard Gas Stays - Each $90.00 + GST
305L800N Upgrade to Extra Pressure at time of lid order - Each $33.00 + GST



The Gas Stays used on Load-Lid between 2015 and 2021 are as follows:



Length

Newtons

Supplier code

Lid models

305mm

650N

UTE3-650N

V1 standard lids

305mm

800N

UTE4-800N

V2 standard lids

505mm

450N

UTE2-450N

V3 standard lids, cab guard lids

645mm

320N

UTE1-320N

Sports bar lids



The gas stays are fitting with a easy release system so can be retro fitting very simply:

Please CLICK HERE to view the 'How to fit Gas Stays' article
