Step-by-Step Instructions
To Replace Load Lid Locks, please watch the below video:

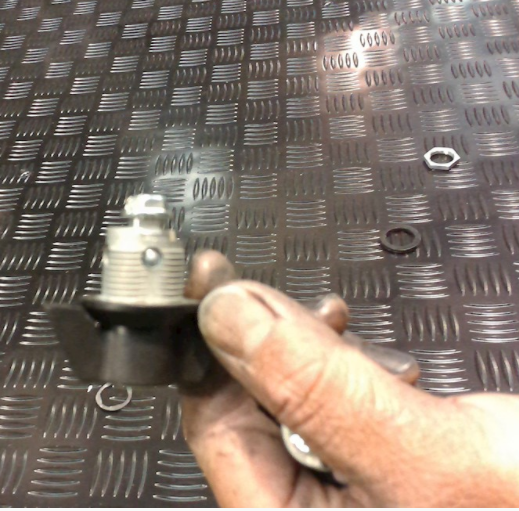

To remove the locks that are in place: From under the lid, remove the threaded bolt on the bottom and the ring nut. Remove the lock unit from above.The package will arrive with the following, 2 of each component: Locks, cams, ring nut and plastic spacer. Black locks are used for powder coated lids and chrome locks are used for standard finished lids. This process should take no longer than 20mins.
Turn the key within the lock to lock it self. Remove key once locked.

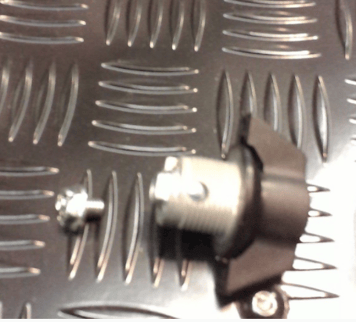

Remove threaded bolt on the bottom.

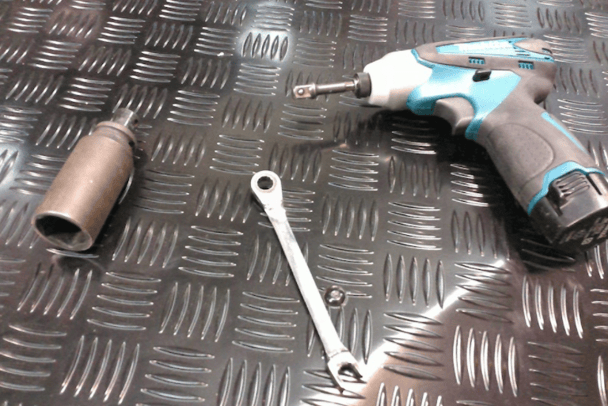

These are the tools required to fit the locks; 10mm ring spanner, impact driver with a 27mm socket piece.

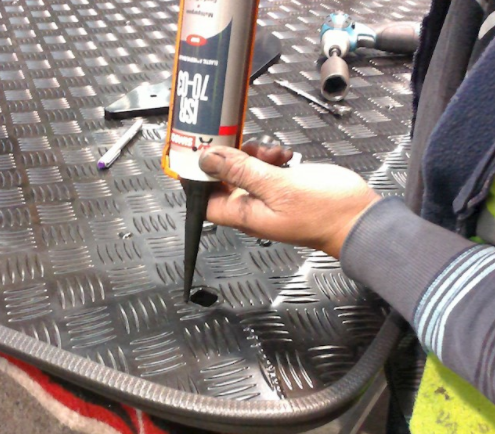

Using black waterproof sealant, apply a thin smear around the pre drilled hole, be sparing so sealant will not extrude from the lock. Place the small plastic spacer on top of the sealant and re apply another thin smear of sealant atop the spacer.
From here: Assemble in reverse as removal.
Once fitted, please have a look at the "How to Adjust Load Lid Locks" video clip to complete the task.
If you need any assistance with this, feel free to contact us at any time.
