Removable Rear Ladder Rack to suit Load Lid

This adjustable height, removable rear ladder rack has been developed so you can utilise your vehicles existing roof racks to carry longer loads

Removable Rear Ladder Rack to suit Load Lid-1

Part Numbers
LL-LRB | Removable, Adjustable Height Rear Ladder Rack to suit Load-Lid, in Oasis Black finish
LL-LRB-MSB | Removable, Adjustable Height Rear Ladder Rack to suit Load-Lid with Moulded Sports Bar/Sailplane,in Oasis Black finish



Please see this sheet to see which one to use: https://utemaster.app.box.com/file/1530661462937?s=wm7lp3w3udxryxy8el74pfqk0xu4mkr6



Specifications

Diameter - 80mm
Lowest Height - 500mm
Highest Height - 632mm
Adjustable in 11 increments of 12mm
Designed to match manufacturers roof rack ratings - 70-100kgs
Available in Mill/Silver finish & Powder-coated Oasis Black

How to adjust the ladder rack
This can be done by removing the bolts shown below, adjusting to the required height and reinstalling the bolts.

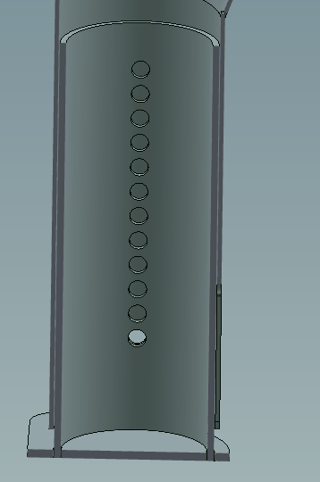

Removable Rear Ladder Rack to suit Load Lid-2

How to install ladder rack

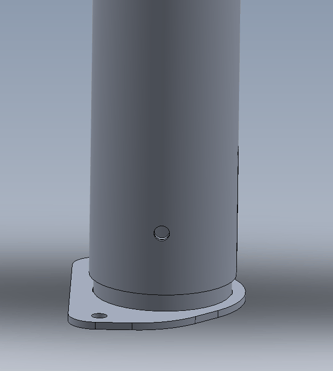

There are two mounting bolts per foot that are bolted through the foot and secured with nylock nuts and fender washers.

Dimensions

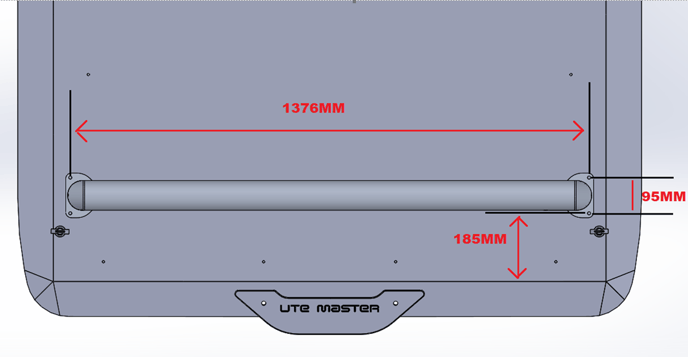

Removable Rear Ladder Rack to suit Load Lid-3

(Please note some ladder rack dimensions may vary depending on the Model of Load Lid)



External Width 1410mm (LL-LRB)

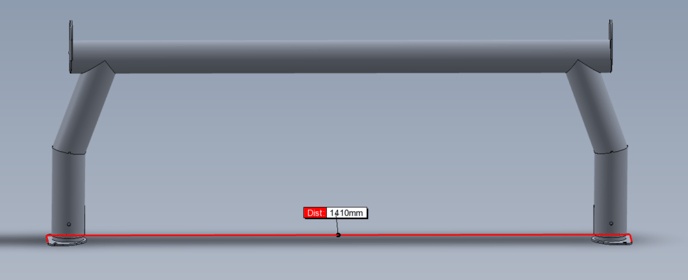

Removable Rear Ladder Rack to suit Load Lid-4

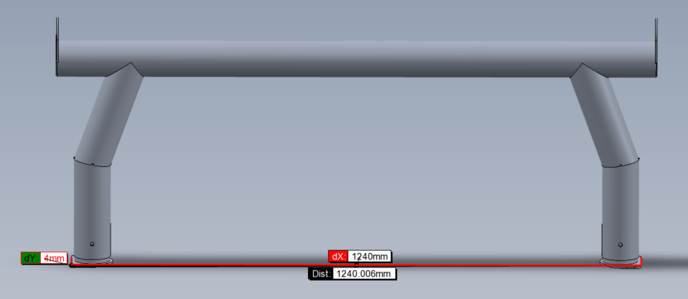

Photos/ Diagrams

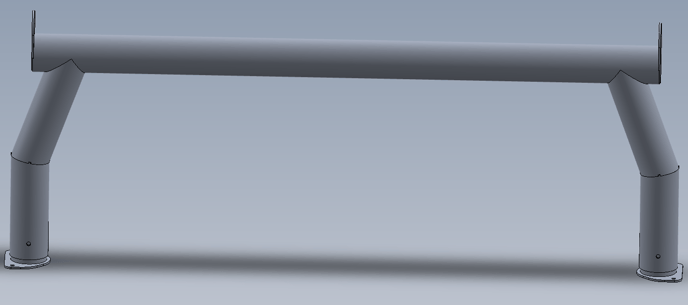

Removable Rear Ladder Rack to suit Load Lid-5

Removable Rear Ladder Rack to suit Load Lid-6   Removable Rear Ladder Rack to suit Load Lid-7

LL-LRB

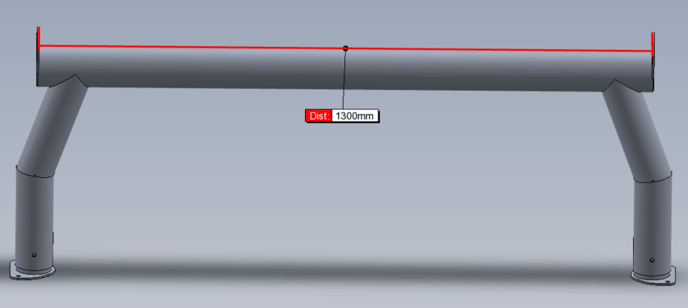

Removable Rear Ladder Rack to suit Load Lid-8

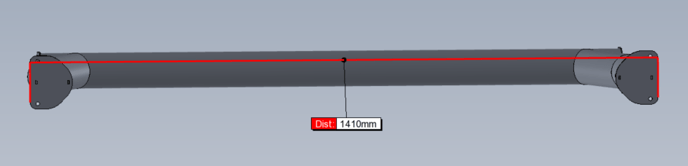

Removable Rear Ladder Rack to suit Load Lid-9

Removable Rear Ladder Rack to suit Load Lid-10



LL-LRB-MSB

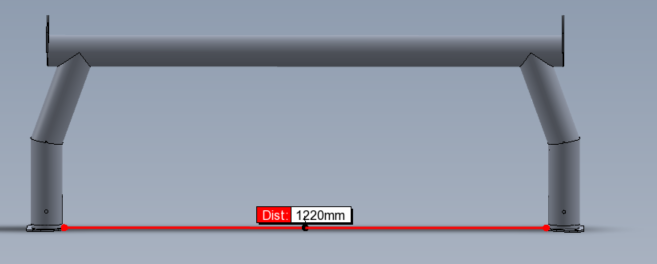

Removable Rear Ladder Rack to suit Load Lid-11

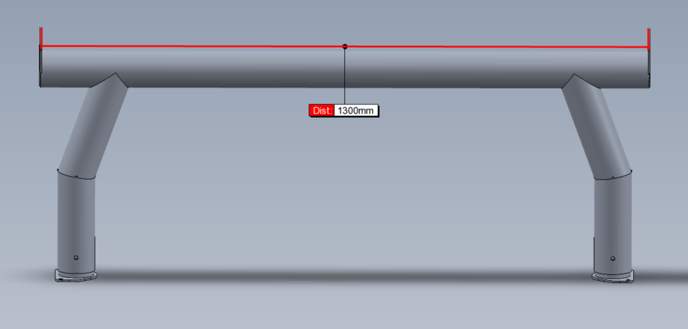

Removable Rear Ladder Rack to suit Load Lid-12
