Internal height inside the Tub/ Wellside under a Load-Lid

It is possible to fit a fridge or drawers/toolboxes etc underneath the Load-Lid. For details on dimensions please see below:

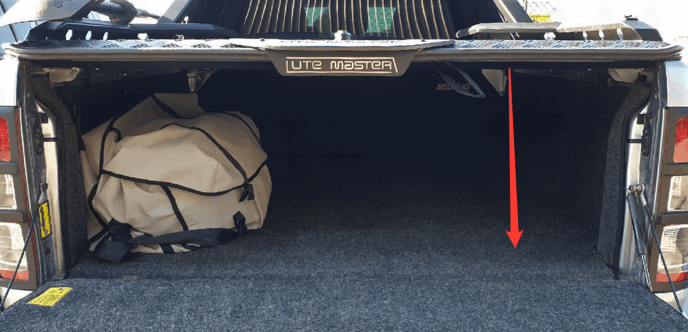

The Load-Lid Internal bracing system is in line horizontally with the top edge of the wellside/tub. To work out how much height you will have under the Load-Lid, simply measure from the top lip of your tub down to the floor.



Internal height inside the Tub-1

Please note that the locking mechanism cover protrudes 35mm into the tub area, so if you have a fridge slide that is slightly higher you will need to lift the lid to allow it to slide past the locking mechanism cover.

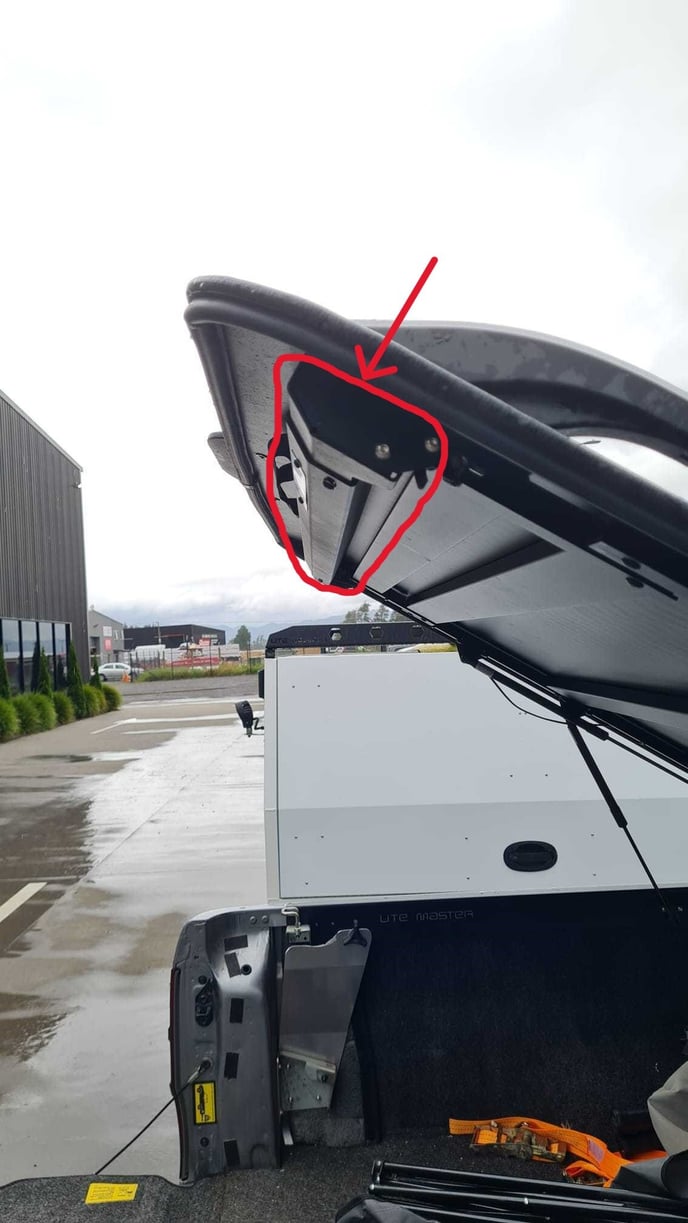

Below is a image showing the location of the locking plate, it is approx 70mm from the back edge of the lid and approx 65mm deep by 35mm high.

Internal height inside the Tub-2
