Hilux Canopy and Drawer Fitting Photos

Clamping Tab Diagrams:

Hilux Canopy and Drawer Fitting Photos-1

Hilux Canopy and Drawer Fitting Photos-2



The Hilux Canopy works best with either no Liner, the Toyota Genuine T-Custom Under Rail Liner or the Sportguard Under Rail Liner. Some liners will require the corner spacer brackets shown below and some will not as these will already be installed behind the liner.

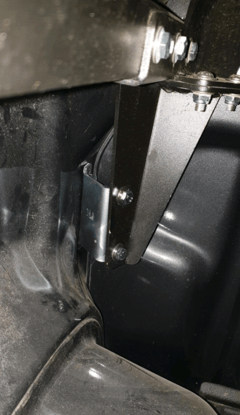

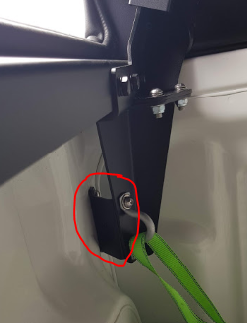

Front Bracket

Hilux Canopy and Drawer Fitting Photos-3  Hilux Canopy and Drawer Fitting Photos-4



Hilux Canopy and Drawer Fitting Photos-5

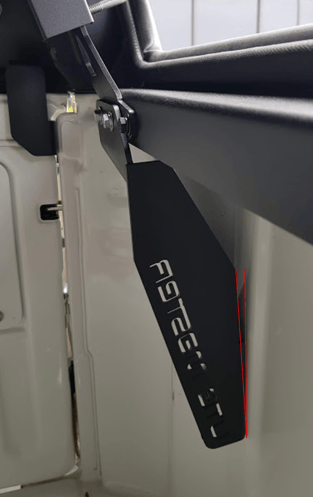

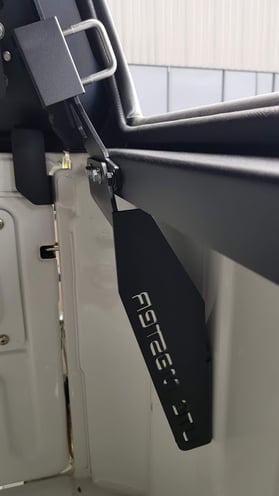

Rear Bracket:

If there is no liner in the vehicle, the rear brackets will angle slightly outwards to mount against the canopy.

Hilux Canopy and Drawer Fitting Photos-6      Hilux Canopy and Drawer Fitting Photos-7

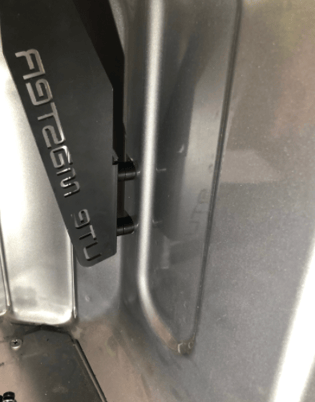

If needed, you can use washers to space this bracket out to the correct placement as shown below:

Hilux Canopy and Drawer Fitting Photos-8



Blok Drawer:

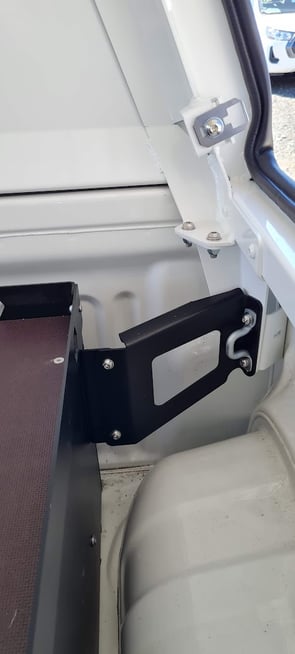

Front Bracket:
Hilux Canopy and Drawer Fitting Photos-9
Rear Bracket:

Hilux Canopy and Drawer Fitting Photos-10
