Drop T Lock Adjustment

Below is a quick guide on how to adjust the Drop T Service Body locks so they work smoothly

Drop T Lock Adjustment

The plate shown below will need to be secured against the back of the Drop-T latch with the pin shown

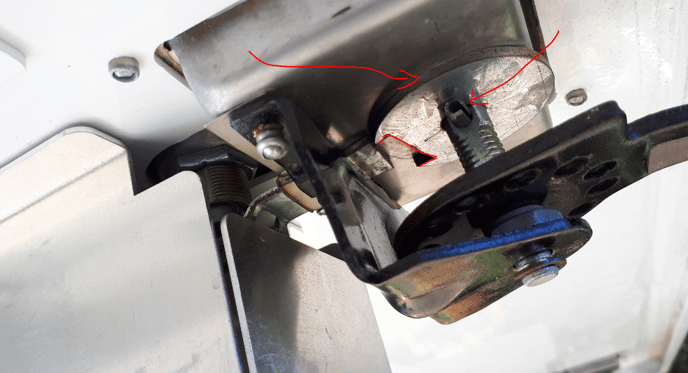

Drop T Lock Adjustment-1

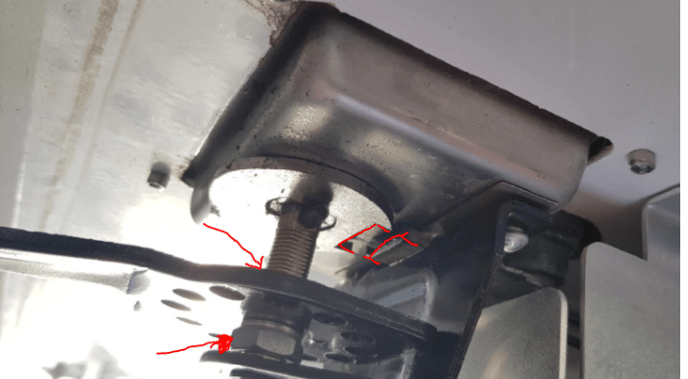

When the latch is in a fully locked position, this needs to be directly vertical so the lock pin lines up with the Lock pin. Drop T Lock Adjustment-2

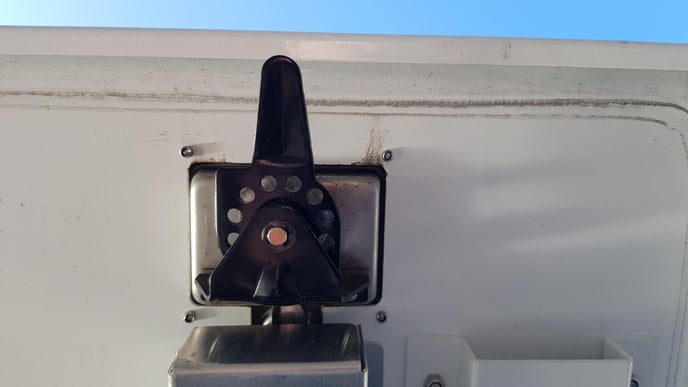

Drop T Lock Adjustment-3

The part shown below will need to sit flush along the bracket in red when locked and when unlocked along the part shown in blue

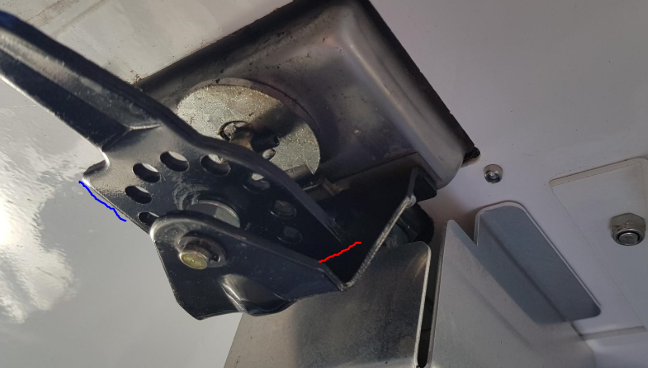

Drop T Lock Adjustment-4

These can be adjusted by loosening and tightening the bolts shown below

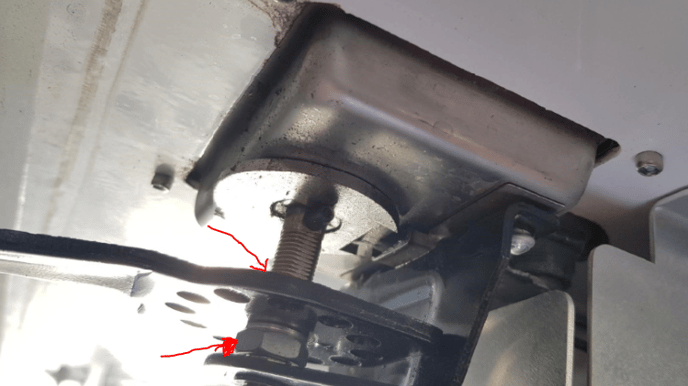

Drop T Lock Adjustment-5

These will need to be done up tightly to ensure there the black lock plate does not come out of alignment when the lock is turned
