Adjusting Load Lid Placement

Once your Load Lid has been installed, if it is not sitting quite right it will need adjusting
There are a couple of reasons why you may need to adjust your Load Lid, please see the below examples:



1: Locking tab is too close to the tailgate, which very quickly/over time can cause damage to the paint on your tailgate. It is essential the load lid is adjusted further back if the locking plate is touching the tailgate to prevent this occurring

Adjusting Load Lid Placement-1

2: The Load Lid is not sitting square or has more clearance on one side than the other

Adjusting Load Lid Placement-2Adjusting Load Lid Placement-3

Both of these issues can be solved with a simple adjustment to the lid. Please follow the steps below:

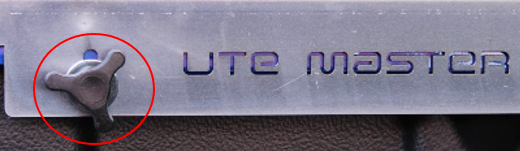

1. Loosen the 4 wingbolts

Adjusting Load Lid Placement-4

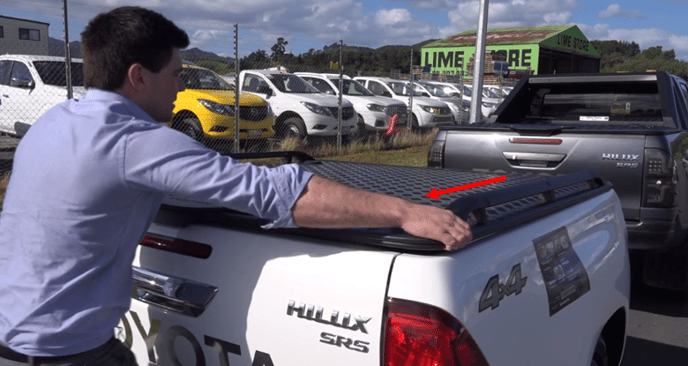

2. Grab both sides of the lid and pull toward you going left to right till you are happy with the position

Adjusting Load Lid Placement-5

3. When your happy with the placement, retighten the wingbolts to hold lid in position

If you have any questions or need assistance please feel free to contact your Customer Service Team
0800 683 352
